3. Workflows

3.1. Current Workflows

3.1.1. Identifying UCE regions

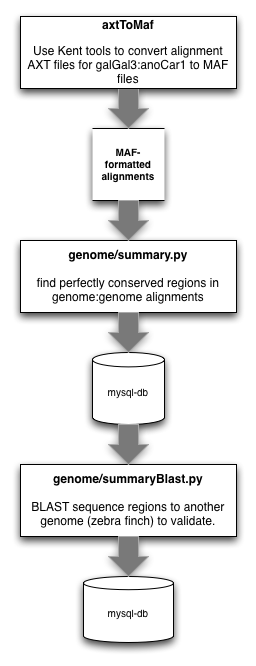

The current workflow that we use for identifying UCE regions between organisms is as follows:

3.1.1.1. convert net.axt files to maf

First, we want to convert our target.query.net.axt files (from UCSC) to MAF formatted files:

axtToMaf ~/Data/alignments/target.query/target.query.net.axt \
   ~/Data/genomes/target/target.sizes \
   ~/Data/genomes/query/query.sizes \
   ~/Data/alignments/target.query/target.query.maf \
   -tPrefix=target. -qPrefix=query.

3.1.1.2. locate perfectly conserved repeat regions

Then, we want to scan these MAF formatted files to find blocks of perfectly conserved elements, of user-selectable size:

python genome/summary.py \
   --configuration=db.conf \
   --maf=~/Data/alignments/target.query/target.query.maf \
   --consensus-length=30 \
   --alignment-length=30 \
   --metadata-key=target

• --configuration <file> is the path to a configuration file containing the following:

  [Database]
  #Database parameters (MySQL)
  DATABASE            = my_db
  USER                = my_user
  PASSWORD            = my_password


• --maf <file> takes the path of the MAF file created above

• --consensus-length <int> takes the minimum length of alignments you are willing to consider

• --alignment-length <int> takes the minimum length conserved region you are willing to accept

• --metadata-key <name> takes the base organism (the target) for your comparisons.

3.1.1.3. Pull these sequence from the database

We need to search these matches for those reads that match in more than one location. Before doing that, we need to pull sequences from the database of whatever length in which we are interested:

python get_conserved_sequence.py \
    --configuration=db.conf \
    --conserved-length=80 \
    --output=sequences.fa

• --conserved-length <int> filters out potential UCEs less than the <int> value passed
• --buffer-to <int> will add equal amounts of flanking sequence to the UCE, bringing its total length to the <int> value passed
• --twobit <file> gives the name of the base organism uses for the purposes of adding flanking sequence
• --output <file> is the location in which to store the output

3.1.1.4. Locate duplicate matches from this set

We may have inadvertently grabbed UCEs that are duplicated in the genomes we are using. We need to search for and avoid these duplicates. First, convert the fasta file from above into a 2bit file (requires fastaToTwoBit from Kent Source - also optional... lastz takes fasta files as input):

faToTwoBit sequences.fa sequences.2bit

Lastz the reads to themselves:

python alignment/easy_lastz.py \
   --target=sequences.2bit \
   --query=sequences.2bit \
   --output=sequences.toSelf.lastz \
   --coverage=50 \
   --identity=80

easy_lastz.py differs from run_lastz.py in that easy_lastz.py is a single-processor wrapper around lastz, while run_last.py is meant for multiprocessing. For the purpose here, easy_lastz.py is a better choice because the data set we are processing is small, and multiprocessing would likely be slower due to the overhead of the additional calls involved.

3.1.1.5. Flag the duplicate matches in the database

Remove the duplicates (was remove_fish_cons_duplicates.py) by flipping the duplicate flag to 1 in the database table:

python flag_cons_duplicates.py \
   --configuration=db.conf \
   --input=sequences.toSelf.lastz

These will be avoided by subsequent calls to get_conserved_sequence.py.

3.1.1.6. Generate a fasta file from these sequences

After removing duplicates, we will create a fasta file of these conserved reads. The following pulls all conserved regions from the database that are longer than 80 bp, buffers them up to 180 base pairs (by adding 45 bp to the 5’ and 3’ flanks), and outputs the data to output.fa:

python genome/get_conserved_sequence.py \
    --configuration=db.conf \
    --conserved-length=80 \
    --buffer-to=180 \
    --twobit=/path/to/target/2bit/file.2bit \
    --output=output.fa

• --conserved-length <int> filters out potential UCEs less than the <int> value passed
• --buffer-to <int> will add equal amounts of flanking sequence to the UCE, bringing its total length to the <int> value passed
• --twobit <file> gives the name of the base organism uses for the purposes of adding flanking sequence
• --output <file> is the location in which to store the output

3.1.1.7. Align the fasta reads to another genome

The purpose here is to find the conserved regions initially located between two species in a third species. In comparison to previous versions of this workflow, we use lastz for this task, in place of BLAST (due to speed).

First, convert the fasta file to a 2bit file [optional]:

faToTwoBit output.fa output.2bit

Now, we will use run_lastz.py because we are aligning against a (potentially) large genomic sequence and benefit from the additional speed of multiprocessing. The run_lastz.py wrapper around lastz does this:

python alignment/run_lastz.py \
   --target=/path/to/twobit/file/of/third/genome/sequence \
   --query=/path/to/conserved/regions/from/above \
   --output=/file/in/which/to/save/output.lastz \
   --nprocs=6 \
   --identity=80 \
   --coverage=80 \
   --huge

• --target <file> the path to the new genome sequence against which we are aligning (e.g. the “target”)
• --query <file> the path to the conserved sequences we identified above
• --output <file> the path to the file in which to save the output
• --nprocs <int> the number of processing cores to use for the alignments. generally speaking, the program will parallelize operations by sending one chromosome (from --target above) to each processing core along with a copy of the conserved sequences (--query above). It will then run the alignments, saving the results to a temporary file that is later concatenated with all other temporary files.
• --identity <int> the minimum percent identity to accept between target and query, when a match is made
• --coverage <int> the minimum coverage of target by query to accept. In other words, if you are attempting to match a 120 bp sequence against the target, 96 bp (out of 120) must match.
• --huge this is a flag that we added to deal with genome builds that are less-than-great. Typically, these builds are composed of very, very many contigs (or supercontigs or scaffolds). Instead of sending each to a different core, we batch many together in a new group of approximately 10 Mbp before sending the batch of reads to a processing core.

3.1.1.8. Cleanup output.lastz

Replace the percent signs in the output file, in preparation for loading into the database:

sed 's/%//g' /file/in/which/to/save/output.lastz > /file/in/which/to/save/output.lastz.clean

3.1.1.9. Create a table for of output.lastz in mysql

Bring the contents of output.lastz.clean into a mysql table

create table conserved (
    id mediumint unsigned not null AUTO_INCREMENT,
    score int unsigned not null,
    name1 varchar(100) not null,
    strand1 varchar(1) not null,
    zstart1 int unsigned not null,
    end1 int unsigned not null,
    length1 smallint unsigned not null,
    name2 varchar(100) not null,
    strand2 varchar(1) not null,
    size2 smallint unsigned not null,
    zstart2 smallint unsigned not null,
    end2 smallint unsigned not null,
    length2 smallint unsigned not null,
    diff text not null,
    cigar varchar(50) not null,
    identity varchar(8),
    percent_identity float,
    continuity varchar(8),
    percent_continuity float,
    coverage varchar(8),
    percent_coverage float,
    PRIMARY KEY (id),
    INDEX name2 (name2)) ENGINE=InnoDB;

3.1.1.10. Load the contents of output.lastz.clean into mysql

LOAD DATA INFILE 'output.lastz.clean' INTO TABLE conserved (score, name1,
strand1, zstart1, end1, length1, name2, strand2, zstart2, end2, length2,
diff, cigar, identity, percent_identity, continuity, percent_continuity,
coverage, percent_coverage);

We now have our candidate set of UCEs.

3.2. Deprecated Workflows

3.2.1. [Deprecated] Identifying UCE regions (v0.1)

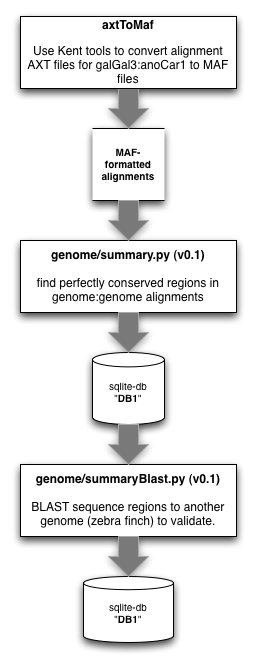

The older workflow that we used for identifying UCE regions between organisms was as follows:

The older workflow depended on the pp and sqlite3 modules of python. As you can see above, we have since ported the code to use mysql as the backend while also using the multiprocessing module in place of pp.

3.2.1.1. convert net.axt files to maf

First, we want to convert our target.query.net.axt files (from UCSC) to MAF formatted files:

axtToMaf ~/Data/alignments/target.query/target.query.net.axt \
   ~/Data/genomes/target/target.sizes \
   ~/Data/genomes/query/query.sizes \
   ~/Data/alignments/target.query/target.query.maf \
   -tPrefix=target. -qPrefix=query.

3.2.1.2. locate perfectly conserved repeat regions

Then, we want to scan these MAF formatted files to find blocks of perfectly conserved elements, of user-selectable size:

python genome/summary.py

Warning

In contrast to the current workflow, all of the current user-selected variables in summary.py were hard-coded into the body of the code.

1. the starting directory, which contained *.maf files (lines 191-193).

directory = '/Users/bcf/Git/seqcap/'
cpu = 1
dBase = 'probe.sqlite'

1. the minimum consensus length, minimum alignment length, and metadata key should be input around line 149.

def processor(input, minConsensusLength=60, minAlignLength=60, metadataKey='galGal3'):

3.2.1.3. BLAST perfectly conserved repeat regions against another genome

We now need to scan the conserved sequences we’ve located against an additional genome to validate:

python genome/summaryBlast.py

Warning

In contrast to the current workflow, all of the current user-selected variables in summaryBlast.py are hard-coded into the body of the code.

First, the path to the database holding the conserved reads and accepting the results from BLAST (line 149)

sqlDb           = 'probe.sqlite'

Second, the paths to the BLAST database and blastall executable

blastDb     = '/Users/bcf/lib/blast/data/taeGut3'
blastExe    = '/Users/bcf/bin/blast-2.2.18/bin/blastall'

3.2.1.4. Flag perfectly duplicated sequences in the cons table

After identifying conserved sequence present in a trio of species, we need to flag the perfectly duplicated reads in the cons table.

python duplicateFinder.py

3.2.1.5. Get the non-duplicate conserved sequences + flank

After filtering out duplicates (using a flag), we need to get the conserved reads out of the database. Because some of them are shorter than 120 bp, we will buffer those that are shorter than 120 bp up to 120 bp by adding sequence to the 5’ and 3’ ends (from the target genome we started with):

python sureSelectSequenceBuffer.py

3.2.1.6. Tile probes across conserved sequences + flanking regions

Feed this file to sureSelectTiler.py, which does the tiling, the counting of masked bases, GC content determination, blasting of probes to themselves, etc. the output of which goes into a csv file.

this file gets imported to the db, and then we run sureSelectSeqName.py on the dbase table (sureselect) that is created after importing the csv file as a table above.

Then ran sureSelectSeqName.py to get sureselect probes into dbase and add metadata.
